BRISA
FUNCTIONALLY COMPLETEFrom residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna. This versatility makes the BRISA line suitable for business parks, industrial estates, ecological zones, parking spaces, large car parks, cycle paths, roundabouts, holiday parks, footpaths and residential areas. All the luminaires in the BRISA line are impact-resistant (IK 10) and waterproof (IP 66).
Standard
Option
Applications
Residential streets, parking lots, pedestrian paths, bicycle paths, connecting roads, business parks
Luminaire type
Area Floodlight
Light cover
Clear glass,
Safety glass
Color
RAL 7016,
RAL 9005,
RAL 9007,
Uncoated
Housing
Aluminium double coated
Lumenrange
From
800
to 8000
CRI
> 70
IP
IP66
IK
IK10 (20J)
IK casing
IK10 (20J)
IK glazing
IK09 (10J)
Lightprofiles
Asymmetric,
Wide distribution,
Long distribution,
Direct beam

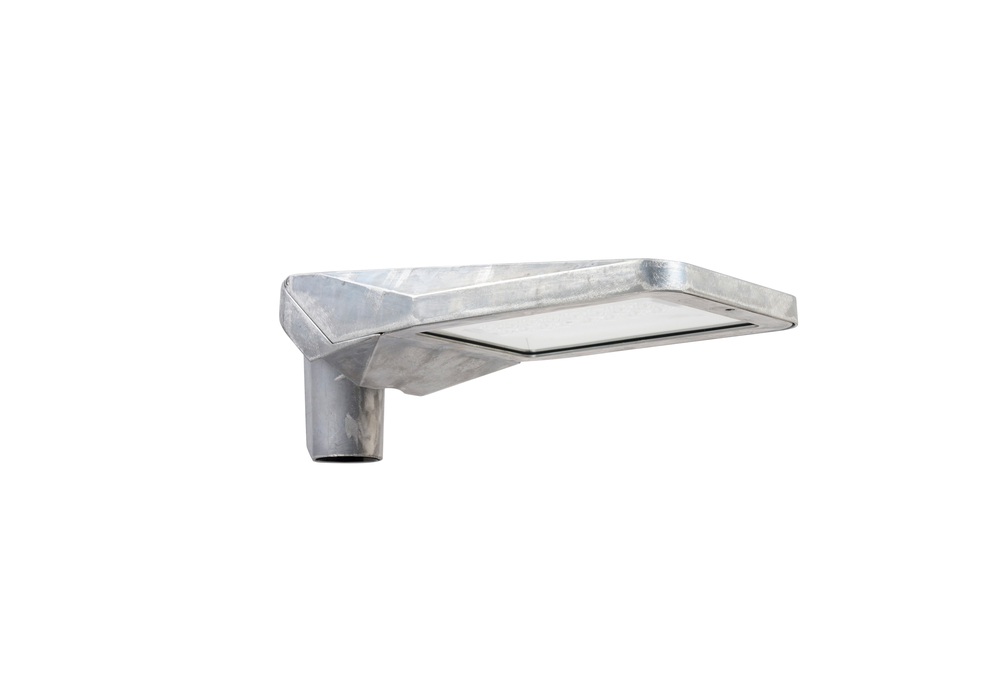

New: BRISA Uncoated
The BRISA is now available in an uncoated aluminium version. This makes it easier to recycle the luminaire at the end of its service life and contributes to circularity.
Lightronics had the BRISA Uncoated tested for service life by an independent agency. Various endurance tests based on corrosion classes C5, C4 and C3 were carried out, with the key conclusion being that the service life is not adversely affected. The tests were equivalent to five years’ exposure in a C5 environment, ten years in a C4 environment and 15 years in a C3 environment. An oxide layer forms on the aluminium, preventing it from corroding further.
BRISA luminaire line benefits
LIGHT WHERE NEEDED
The BRISA features tilt adjustment to shine the light beam exactly where you need it under all circumstances. A BRISA is also available with a spherical diffuser, making it suitable for use as guidance lighting. The BRISA can be supplied with any dimming program you specify. This keeps your energy consumption low. The BRISA is supplied with a certified paint finish (tested according to the Qualicoat certification scheme and ISO12944). This means that the luminaire is double-coated and can withstand aggressive environments, such as the sea climate in coastal areas.

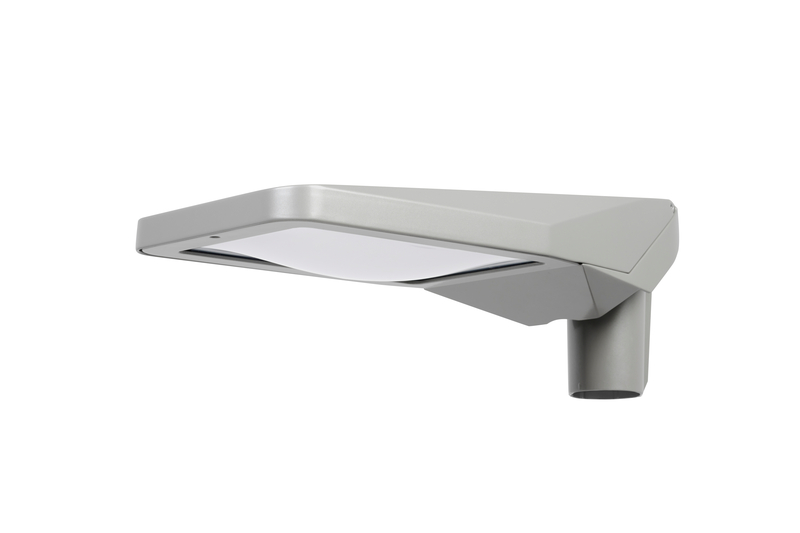

BRISA Optica
Lighting comfort at 1
The BRISA Optica is a variant of the BRISA range and features an optical diffuser. In the Optica, the flat glass panel has been replaced by a domed cover. The frosted finish of the optical diffuser creates a soft light pattern and ultimate lighting comfort.
SPECIALLY FOR BATS
Bats are protected in the Netherlands by the Dutch Nature Conservation Act (formerly the Flora and Fauna Act). In studies conducted to assess the effects of lighting on this protected species, researchers found that lighting can indirectly have an adverse effect on the bats’ essential flight and migration routes, and the foraging area they require to survive. Lightronics’ BRISA BAT luminaire, which is equipped with an amber light source, is the ideal solution for most bat species. The luminaire retains its functional light distribution properties.
SPECIAL VARIANT FOR PEDESTRIANS
The special optical system makes special applications possible. For example, the BRISA WALK's optical system has been specifically designed for pedestrian crossings. This luminaire contributes significantly to greater traffic safety. The optical system creates a strong contrast with the surroundings to illuminate pedestrians more clearly.
SPECIAL VARIANTS FOR CYCLISTS
The BRISA BIKE luminaire features an adapted lens for narrow light profiles. As a result, the spacing between the posts can be increased to 30 metres at a post height of four metres. The lenses used for the BRISA BIKE make it the perfect luminaire for cycle paths, back alleys, footpaths or narrow roads.
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
Alternative luminaires
Versatile and flexible
The BURAN is a versatile luminaire designed for public spaces. It is suitable for a wide range of applications: from residential areas to cycle paths and from roundabouts to local access roads. The BURAN is both functional and decorative.
