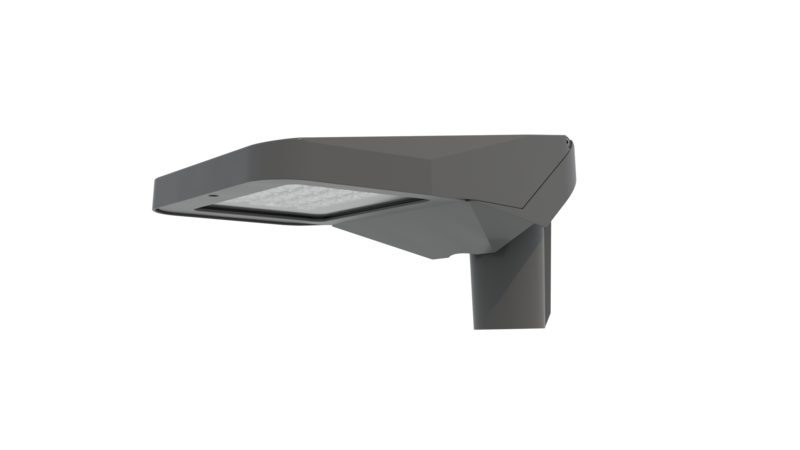

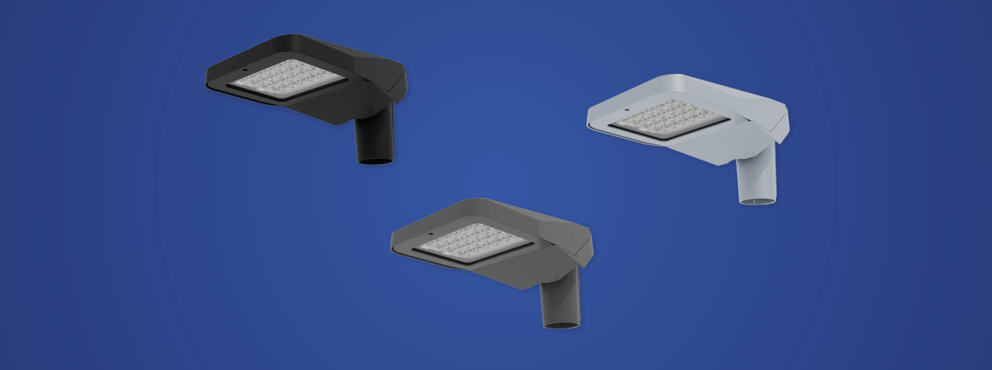

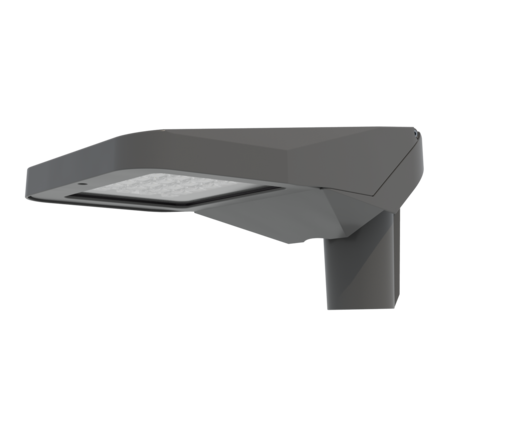

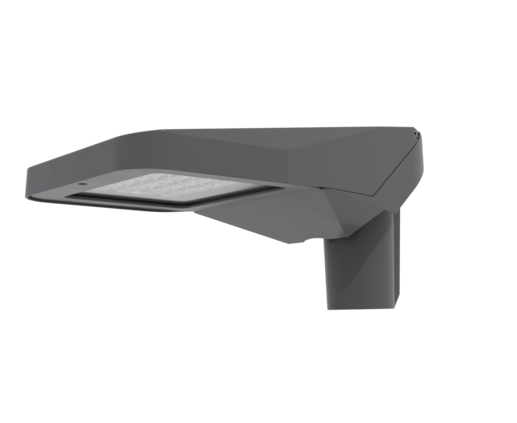

BRISA Mini
A unique lighting solution in a compact designThe BRISA Mini has a compact design and is smaller than the BRISA. Thanks to the miniaturisation of key components, less material is required, reducing the luminaire’s environmental impact without compromising its lighting performance. With a lumen range of up to 6,000 lumens, the luminaire is suitable for a wide range of applications.
Standard
Option
Applications
Residential streets, car parks, pedestrian and cycle paths, local access roads, industrial sites
Luminaire type
Area Floodlight
Light cover
Tempered safety glass, clear
Color
RAL 9007,
RAL 9005,
DB 703,
Uncoated
Housing
Aluminium
Pole height
From 4m
to 6m
Lumenrange
From
600
to 6000
CRI
> 70
IP
IP66
IK
IK10 (20J)
Lightprofiles
Asymmetric,
Wide distribution
Always tailor-made lighting
- Proven performance in a compact design
- More sustainable, using less material
- Widely applicable, from cycle paths to residential areas
- Part of the trusted BRISA family
- Available in a range of colours
The Mini is a fully-fledged member of the BRISA family – and even more than that. With its compact design, the BRISA Mini sets the tone for future developments. The BRISA family is characterised by its sleek and functional design. The adjustable tilt angle and ease of installation are other key features of these luminaires.
Contact us
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
BRISA-family
Functionally complete
From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna.
External lenses for guidance lighting
The BRISA EXL is an ideal lighting solution for (long) cycle paths in rural areas and residential neighbourhoods. The BRISA EXL allows for pole spacings of up to 34 metres with a pole height of four metres. The luminaire also provides wayfinding lighting.
Light in the area

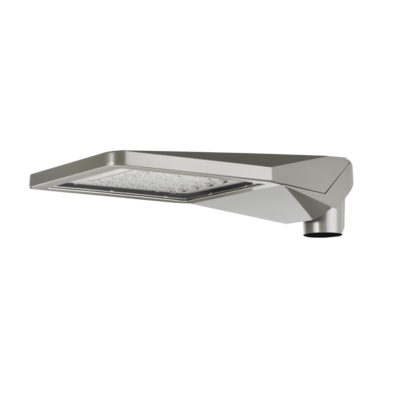

The BRISA PLUS features tilt adjustment to shine the light beam exactly where you need it under all circumstances. Road signs, road markings, trees and plants, fellow road users: BRISA PLUS has been designed to illuminate everything on and at the side of the road.
Looking for a lighting solution? We look forward to helping you
