CORNUS

FLEXIBLE, ROBUST AND STYLISH

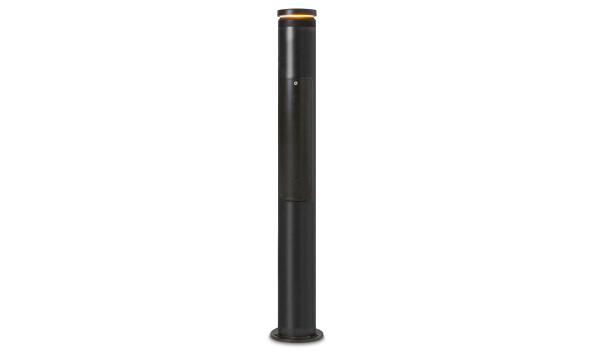

The CORNUS is a stylish LED bollard luminaire with adjustable optics (symmetrical or asymmetrical) and three switchable power settings – no programming is required. Available in three RAL colours and four colour temperatures (1750K, 2700K, 3000K, 4000K) and optionally with a twilight switch. Robust (IK10), well-sealed (IP66) and suitable for car parks, footpaths, holiday parks, marinas and entrances, amongst other locations.

Short overview

Standard

CE RoHS To be mounted on normal to highly flammable materials IP66 IK10 (20J)

Option

Dali 2 optional

Applications
Car parks, footpaths, holiday parks, marinas, entrances, squares and parks

Luminaire type
Bollard luminaire

Light cover
UV-stabilised polycarbonate, clear

Color
RAL 7022, RAL 9005, RAL 9006

Housing
Aluminium coated

Weight
10,5

Pole height
From 1 Meter

Lumenrange
From 750 to 1100

Power
5 - 19 W

Wattage
230/240 V, 50 Hz

CRI
> 70

IP
IP66

IK
IK10 (20J)

Lightprofiles
Asymmetric, Symmetric

Downloads
CORNUS Leaflet CORNUS Installation instructions CORNUS LDT Files PRICELIST RESIDENTAL- AND PUBLIC SPACES

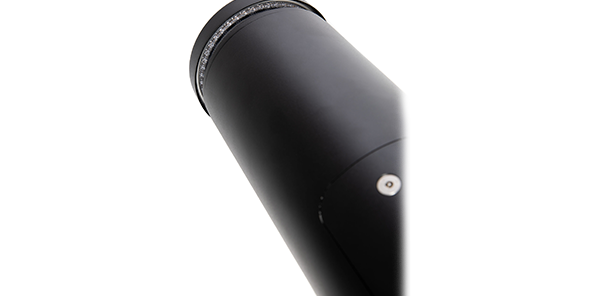

Cornus-Product-Photo-3-scaled-1

CORNUS benefits

IMPACT-RESISTANT AND FUNCTIONAL

The CORNUS lighting column is easy to install: it is available in a version with a base plate (flange) and a version with an (extended) base section. The luminaire combines impact resistance with high-quality lighting technology. Advanced lenses in the head of the pole ensure excellent light distribution across the road surface. There is virtually no glare, as there is no direct view into the LEDs.
