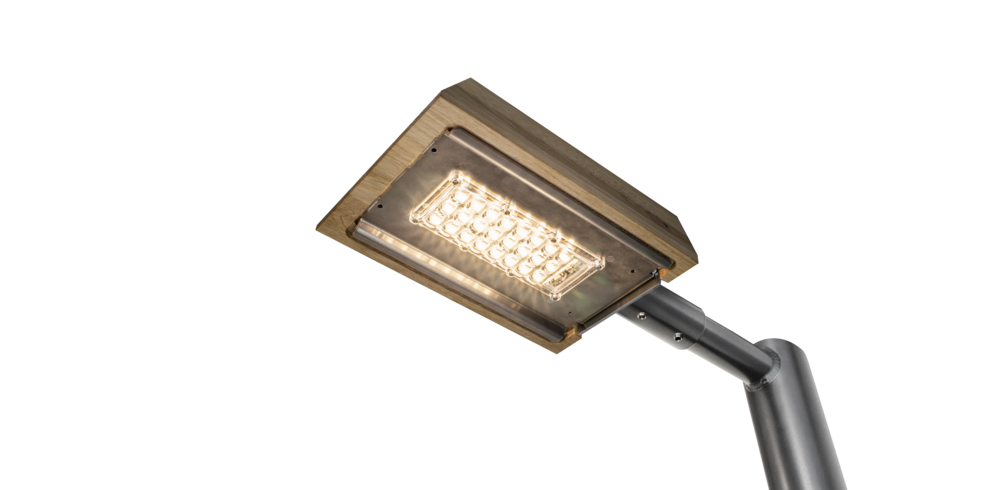

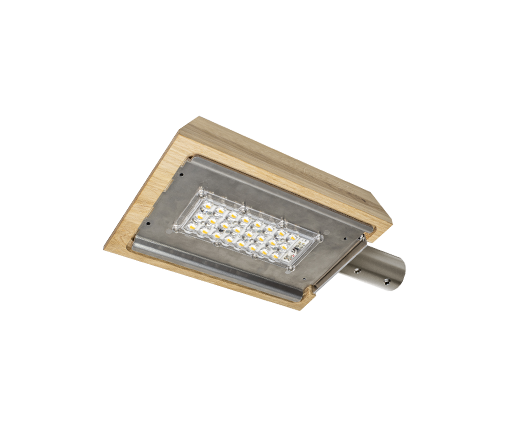

MARIN Oaken
CIRCULARITY REINVENTED
The MARIN Oaken combines innovative technology with an environmentally friendly circular design. The luminaire is energy-efficient, made from sustainable materials and has a minimal environmental footprint. With MARIN Oaken, we are making public lighting more sustainable.

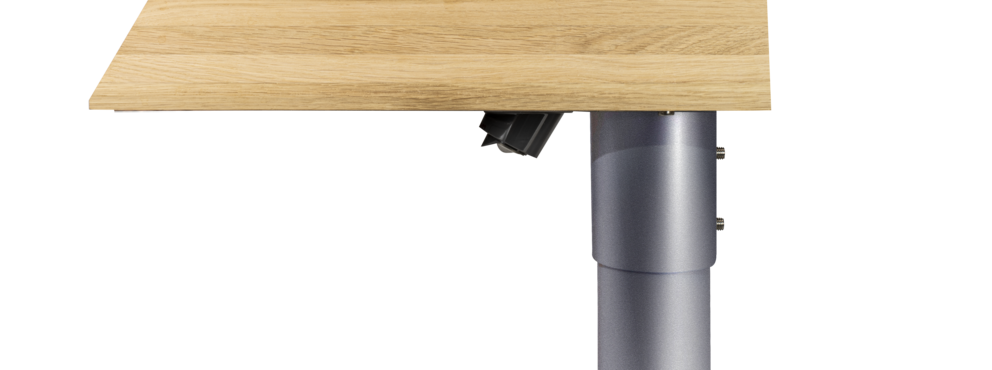

The design of the MARIN Oaken sets new standards for sustainability. This starts with the construction. Every component has been carefully selected with a view to minimising environmental impact throughout its entire life cycle and is manufactured in an environmentally friendly manner. For example, the housing of the MARIN Oaken is made from European oak. This is a highly durable material that can withstand exposure to extreme weather conditions and has a long service life.
The unit plate is made from over 90% recycled aluminium; as it is unpainted, it is also easy to recycle. The same applies to the top section. Our sustainable lighting solutions are produced in a carbon-neutral manner and are exceptionally energy-efficient. With the latest generation of products, we aim to take sustainability to the highest possible level, both during the production phase and throughout the product’s lifespan and reuse.
Standard
Option
Applications
Footpaths, cycle paths, residential streets, car parks, access roads, industrial estates
Luminaire type
Area Floodlight
Light cover
Polycarbonate, clear
Color
Wood color, naturally aging
Housing
Europees eikenhout en aluminium
Weight
2,5 - 4,2 kg
Pole height
From 4
to 8 meter
Lumenrange
From
800
to 8000
CRI
70
IP
IP66
IK
IK08 (5J)
Lightprofiles
Asymmetric,
Wide distribution,
Long distribution,
Symmetric
MARIN Oaken benefits
TM66: WHAT DOES THAT MEAN?
MARIN Oaken has been assessed under the TM66 Assured Product Verification Scheme. This is a pioneering initiative developed and implemented by the UK Lighting Industry Association (LIA). The TM66 score indicates how a product performs within the circular economy. MARIN Oaken has been rated ‘excellent’, the highest achievable level of circularity.
MINIMUM ENERGY CONSUMPTION
The luminaire is characterised by its superior specifications. It offers very high efficiency, which means minimal energy consumption with maximum light output. It is available in a range of light colours and light distributions and has a lifespan of 100,000 hours, which equates to 25 years if the luminaire is switched on for an average of 4,000 hours per year. Thanks to the use of the latest LED technology and the newest LED drivers, the luminaire achieves an efficiency of over 190 lumens per watt, ensuring minimal energy consumption with maximum light output.
LONG LIFE SPAN
The MARIN Oaken features an angular design that allows water to drain away. The luminaire is resistant to exposure to extreme weather conditions. The MARIN Oaken has a lifespan of over 20 years and is therefore 100% recyclable.
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
Alternative luminaires
Maximum circularity
The conical CEDER luminaire can be used for a wide range of applications in public spaces. The luminaire is inspired by the durability of the cedar tree. The CEDER is available in three versions. Choose between functional lighting, a more diffuse light distribution or a comfort lighting scheme.
Functionally complete
From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna.
Decorative and elegant
The AMPULLA combines high quality with attractive design: this high-end post-top luminaire is characterised by its transparent diffuser with textured lines that help produce the beautiful lighting pattern.
Looking for a lighting solution? We look forward to helping you
