PASSAAT
Sustainable and circular design

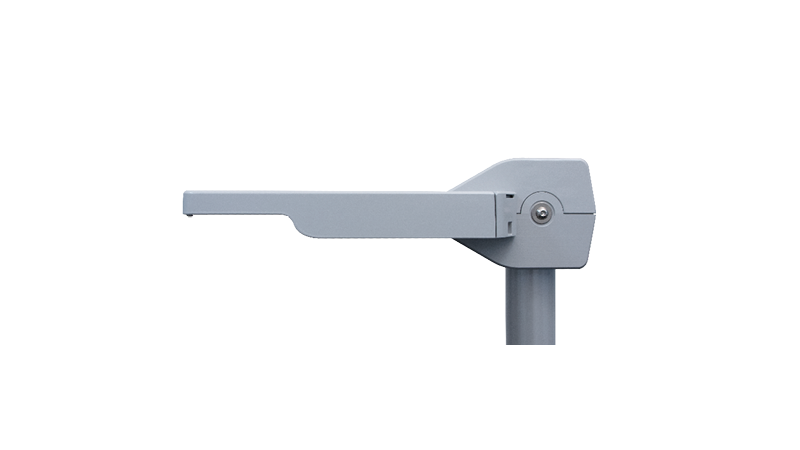

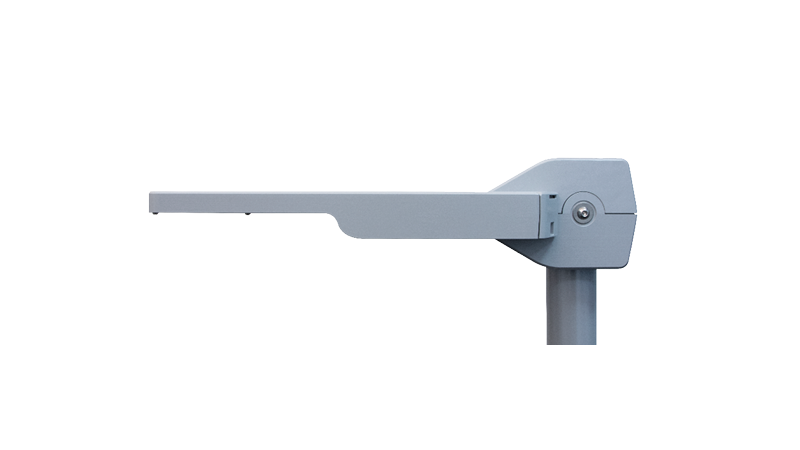

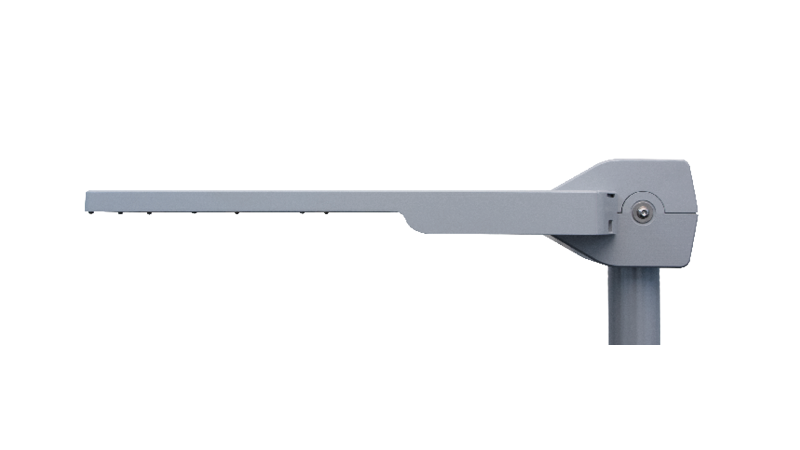

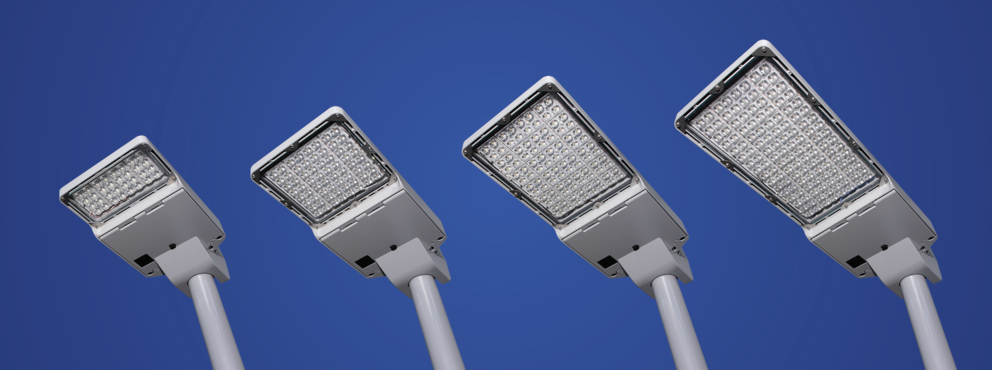

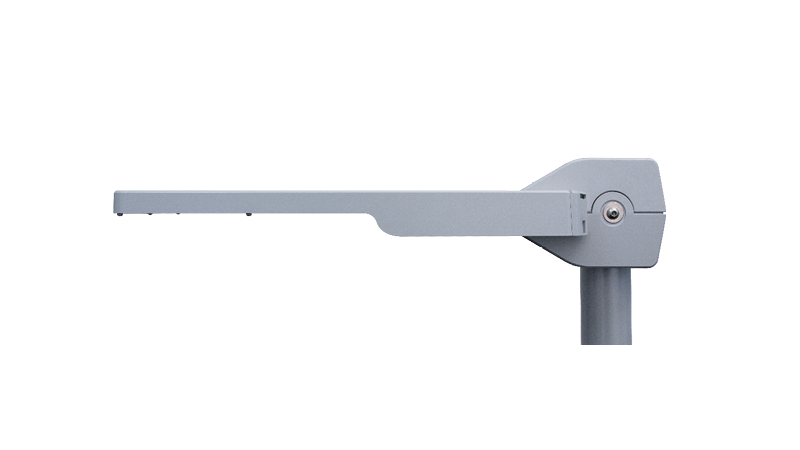

The PASSAAT luminaire range features a state-of-the-art design, unrivalled flexibility and excellent energy efficiency. The luminaire is available in four different sizes (S, M, L and XL) and fitted with 32, 64, 96 or 128 LEDs. The L and XL versions are suitable for main roads and motorways. There is a choice of different colour temperatures: amber, 2200K, 2700K, 3000K and 4000K. The lumen range is from 5,833 to 48,945 lm.
The optics and various light profiles ensure comfortable, directional and efficient light distribution. The PASSAAT reduces glare, prevents light nuisance and light pollution. The PASSAAT provides responsible lighting with lower energy consumption and minimal impact on the environment.
The luminaires feature a sustainable and circular design, with all components designed with ease of dismantling and maximum recyclability in mind.
Standard
Option
Applications
Public space, within built-up areas, outside built-up areas
Luminaire type
Area Floodlight
Light cover
Safety glass
Color
RAL 9005,
RAL 9006,
DB 703
Housing
Aluminium
Pole height
From 4m
to 16m
Constant Lumen Output
Standard
Lumenrange
From
4904
to 48945
CRI
> 70
IP
IP66
IK
IK10 (20J)
IK glazing
IK08 (5J)
Lightprofiles
Asymmetric,
Long distribution,
Wide distribution,
Direct beam
Hortonwood project

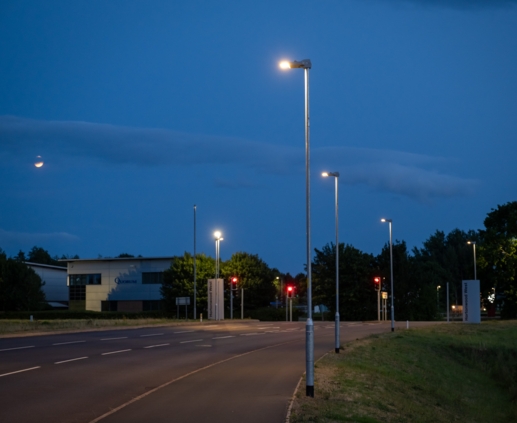

Hortonwood is a newly developed business park in Telford (Great Britain). The council’s main objective was a reliable, energy-efficient lighting solution with minimal long-term energy and maintenance costs. Twenty PASSAAT S luminaires with a colour temperature of 3000K were installed. Consuming just 38W per unit, the luminaires deliver significant energy savings.
