PRUNUS F
DESIGN WITH AN EYE FOR DETAILThe PRUNUS F is a round luminaire and available in four variants. This luminaire has a special appearance and is suitable for a large number of applications, such as residential areas, public squares, parks, business parks, district distributor roads, town and village centres, separate cycle paths and car parks. The PRUNUS F is available with a transparent, flat UV-stabilised polycarbonate light cover (F1/F2), a contoured light cover made from textured polycarbonate (F3) and a flat light cover made from transparent safety glass (F4).
Standard
Option
Applications
Residential areas, city and village centers, squares and parks, pedestrian and cycle paths, car parks, business parks
Luminaire type
Post-top luminaire
Light cover
UV-stabilised polycarbonate, clear
Color
RAL 7016
Housing
Aluminium coated
Lumenrange
From
800
to 6000
CRI
> 70
IP
IP65
IK
IK10 (20J)
Lightprofiles
Asymmetric,
Wide distribution,
Circular distribution
MARKING POINTS
The PRUNUS F can optionally be fitted with an LED ring in the top cover. This makes it possible to apply marking points in the streetscape and to assign the living environment its own identity. The LED ring is available in seven colours.
Ocean Blue
PRUNUS F benefits
LIGHTING AS AN ORIENTATION LANDMARK
Town and village centres need to be consistently recognisable in a streetscape. The PRUNUS family offers planners, architects and local authorities the opportunity of structuring the living environment in a recognisable and stylish manner using a single luminaire range. This family of luminaires, which includes 6 models and 23 variants, offers an extensive range of choice in terms of shape, light distribution and application possibilities. An LED ring in the hood or top flange makes it possible to integrate orientation landmarks in the streetscape and give the living environment its own identity. The LED ring is available in eight colours.
VARIANTS

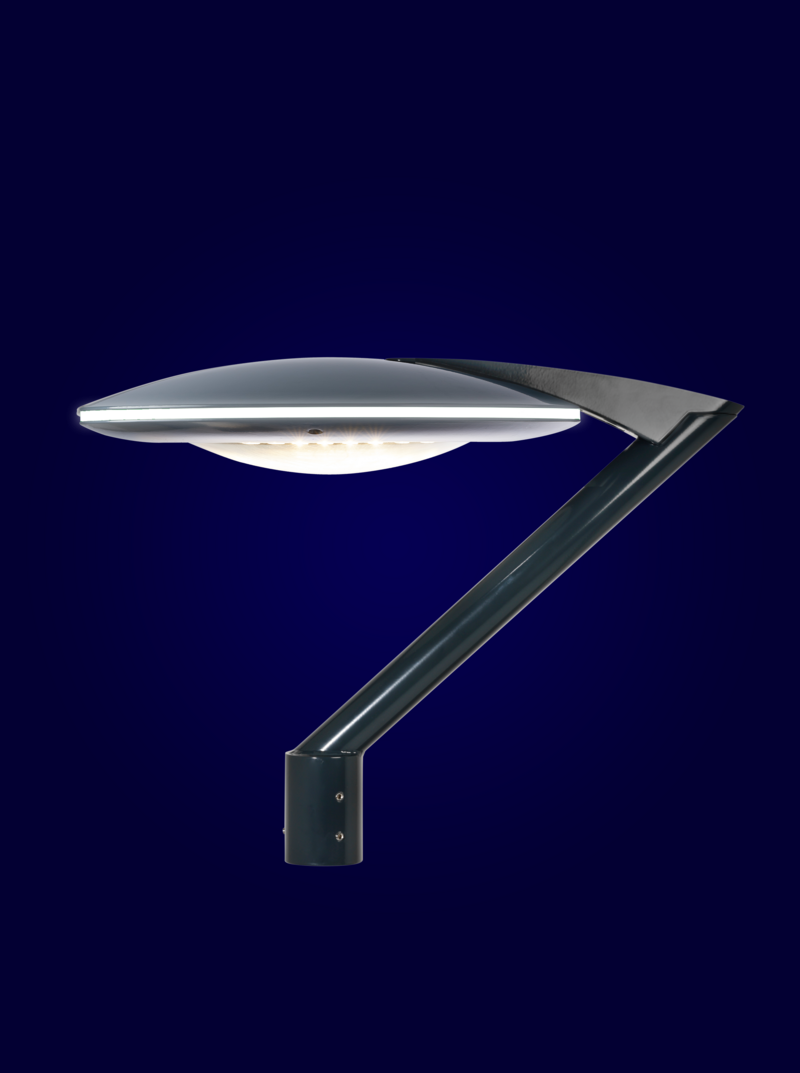

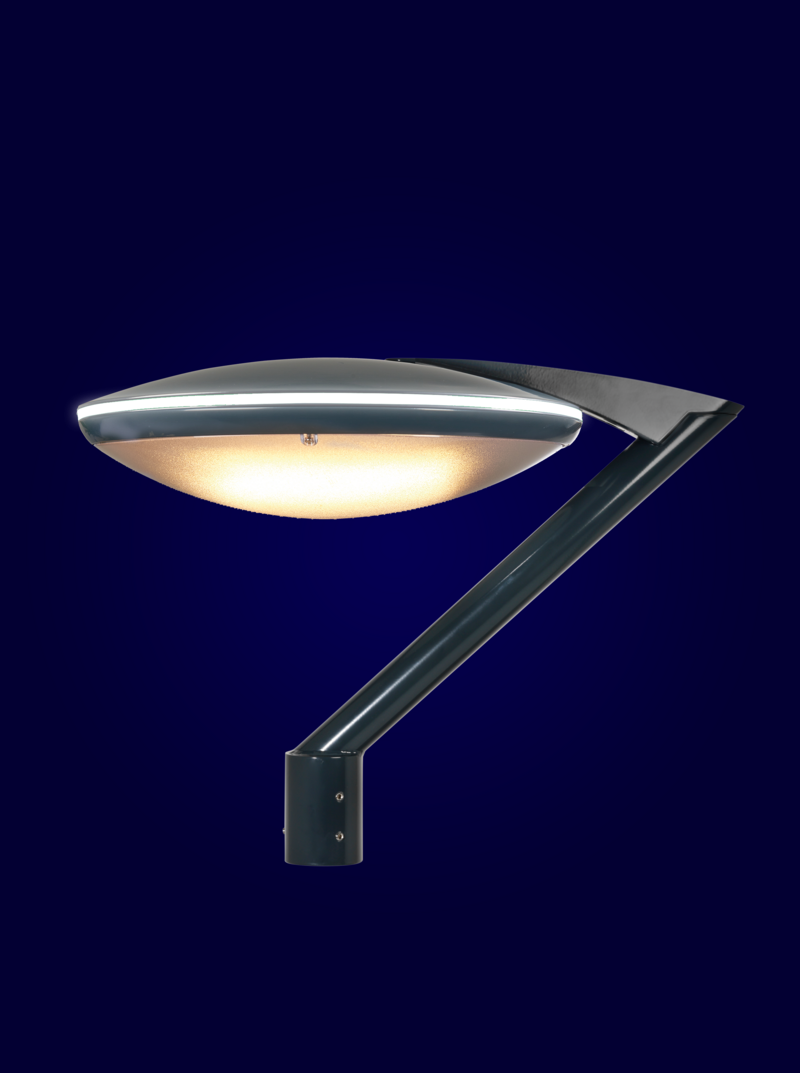

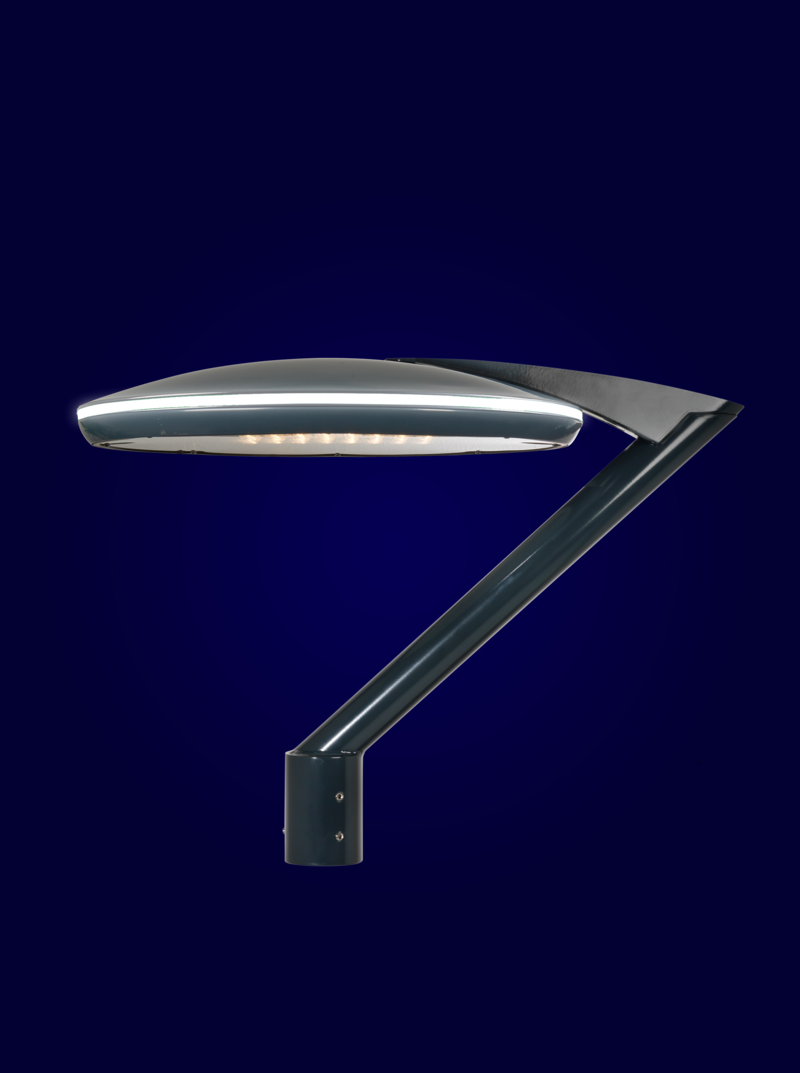

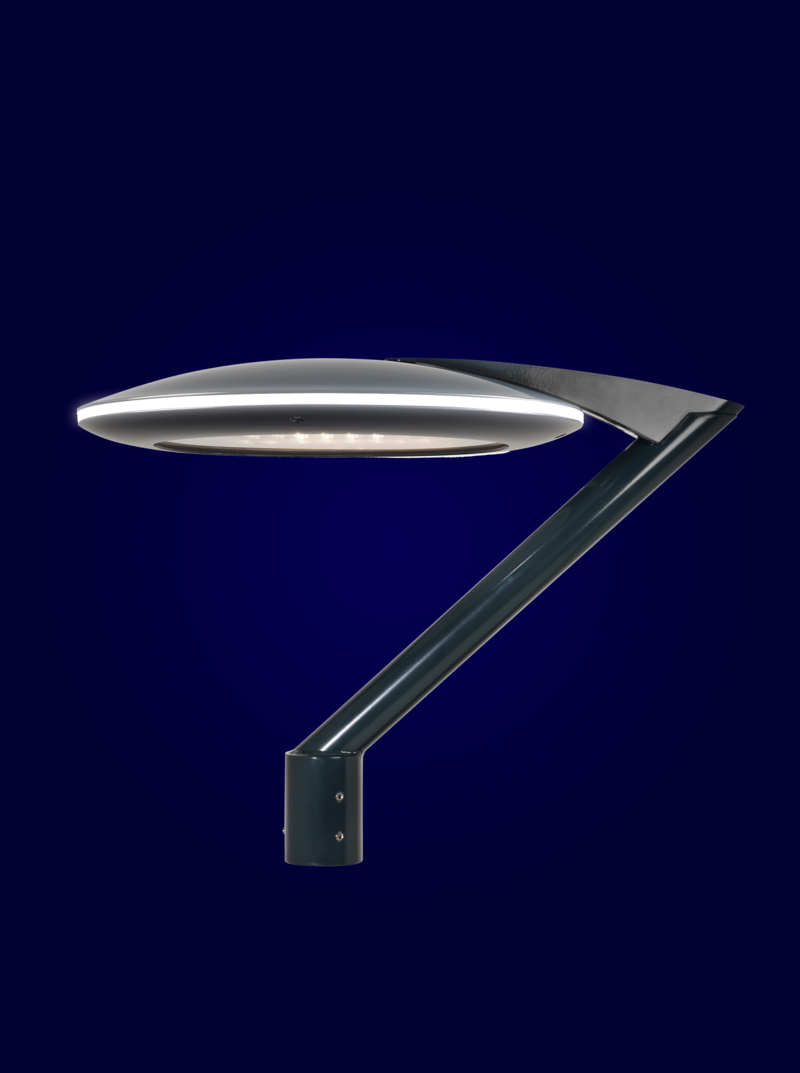

Shape and flexibility are two important factors in the PRUNUS family. The PRUNUS F is available in four variants. A different light cover distinguishes them from each other. The F1 and F2 have a flat light cover made from transparent polycarbonate. The F3 has a contoured light cover made from transparent textured polycarbonate. The F4 has a flat light cover made from transparent safety glass.
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
Alternative luminaires
Variation in shape
The PRUNUS E is a round LED luminaire with an adaptable mounting arrangement for slide-on or post-top attachment. The PRUNUS E is available in four variants and is suitable for a wide range of applications in public spaces.
Functionally complete
From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna.
Versatile and flexible
The BURAN is a versatile luminaire designed for public spaces. It is suitable for a wide range of applications: from residential areas to cycle paths and from roundabouts to local access roads. The BURAN is both functional and decorative.
