SGR

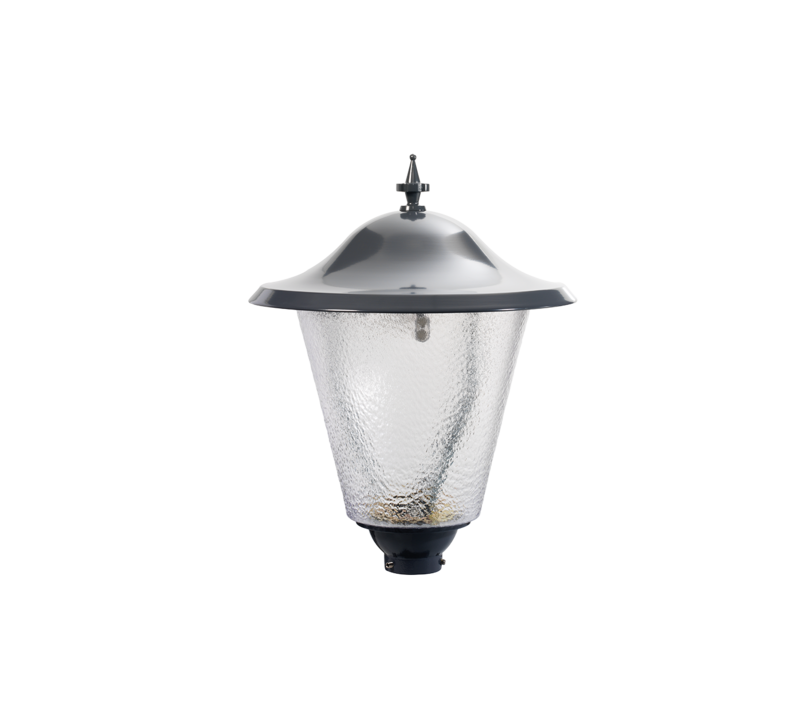

CLASSIC AND FULL OF CHARACTERClassic luminaires do justice to the character of their surroundings and are perfect for, for example, a historic town centre or village centre. The Schiedam Gracht luminaire (SGR) proves that a classic-looking luminaire can also deliver energy savings and good light output. The SGR is particularly well suited to residential areas and holiday parks, amongst other places. The LED street lighting is impact-resistant (IK09) and waterproof (IP65).
Standard
Option
Applications
Residential areas, town and village centres, squares and parks, holiday parks
Luminaire type
Post-top luminaire
Light cover
UV-stabilised polycarbonate, ice motif
Color
RAL 9005
Housing
Aluminium coated
Lumenrange
From
800
to 3000
CRI
> 70
IP
IP65
IK
IK09 (10J)
Lightprofiles
Circular distribution,
Symmetric

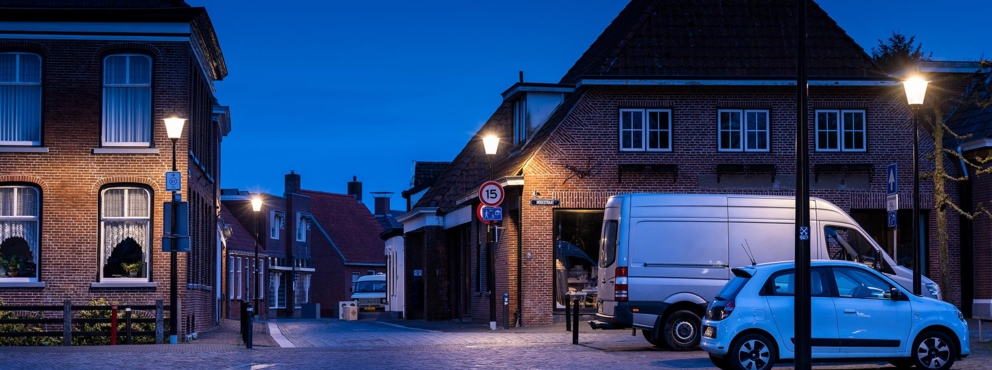

Antique lamppost enhances the authentic atmosphere
Lighting sets the tone in the streetscape. The classic look of the SGR can be further emphasised by mounting the luminaire on a pole or wall bracket in a matching, authentic style. These atmospheric lighting combinations look their best in both modern and classic settings.
DOWNLOAD LEAFLET
SGR benefits
A classic look with modern technology
SGR combines a nostalgic look with the benefits of modern technology. SGR is compatible with UniCliq: a unique system that allows the very latest LED lighting solutions to be implemented quickly and easily in existing luminaires. This is cost-effective and sustainable. Furthermore, the appearance of the luminaire remains unchanged, thereby preserving the character of a neighbourhood or street. Classic meets modern.
Climate Agreement implementation
The choice is yours, ranging from CLO (Constant Lumen Output), motion detection and communication between luminaires to integrating an existing management system or preparing for sensors. You can also opt for different luminaire finishes: functional or more stylish.
Lightronics’ luminaires feature CLO (Constant Lumen Output) or five standard dimming modes (1A, 2A, 3A, 4A and 5A), which alter the power and light intensity based on preconfigured time settings.
Lightronics offers full system integration with Controlled Solutions. This includes the use of communication modules from brands such as CityTouch, Luminext, TVilight or Remoticom. Motion detection with local communication by RF is a further possibility. Controlled Solutions projects are tailor-made solutions that involve additional charges for the initial analysis, system configuration and the final acceptance procedure.
Alternative luminaires
Classic look
The OGR (Oude Gracht) is a classical post-top luminaire that adds cachet to a historic town or village centre. The luminaire can be supplied with or without ladder rests and optionally with a copper hood and finial.
Optimal light distribution

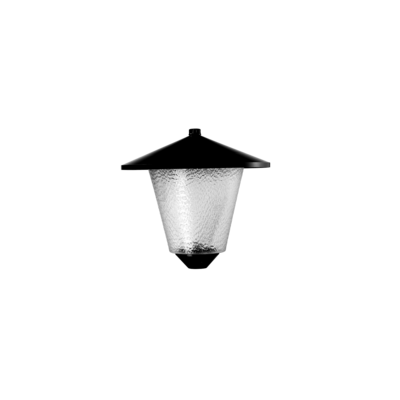

The PRT luminaire is a particularly decorative addition to your streetscape. This variation on the theme of the traditional conical luminaire shape offers many possibilities for street and yard lighting. Thanks to good reflective technology, this luminaire delivers optimal light distribution.
Flexibility in shape and function
The PRUNUS A post-top luminaire has a transparent or semi-frosted light cover and is available with various light distributions. Because the light distribution can be precisely determined, the PRUNUS provides light where and when required in public spaces.
Looking for a lighting solution? We look forward to helping you
