SYMM
Design up- en downlighter
SYMM is a high-quality up and downlighter from the HOGRO Plus luminaire range. The luminaire provides comfortable light and attractive façade accents. There are three light bundles: spot, area and gallery. Partly thanks to the mounting plate, the luminaire is quick to install.
The SYMM can be optionally fitted with a twilight switch. The luminaire is energy-efficient and has a long service life with lumen maintenance – up to 100,000 hours (L96/B10).
The SYMM is available in the colours DB703 (Anthracite Grey), RAL 9010 (White) and RAL 9011 (Graphite Black). Thanks in part to the mounting plate, the luminaire is quick and easy to install.
Standard
Option
Applications
Appartment complex, entrances, external acces galleries, front doors, porches, staircases
Luminaire type
Surface-mounted luminaire
Light cover
UV-stabilised polycarbonate, clear or frosted,
UV-stabilised polycarbonate, opal
Color
RAL 9010,
RAL 9011,
DB 703
Housing
Aluminium
Weight
1,2 kg
Lumenrange
From
280
to 1120
Wattage
230/240 V, 50 Hz
CRI
70
IP
IP65
IK
IK10 (20J)
Lightprofiles
Not applicable
Cable entry
Back
Sustainable, durable and stylish LED luminaires for homes and residential complexes
Good lighting contributes to residential quality. The HOGRO Plus LED luminaires from Lightronics enhance social safety, provide light where desired and are energy-efficient. In addition, they accentuate the character of the building.
The HOGRO Plus series has been designed with great attention to detail. These functional designer luminaires for wall and ceiling lighting are part of a single family with a consistent visual identity. Sophisticated LED technology ensures even distribution of light. Find out more about the RINK, GEO and DOTT family of luminaires.
HOGRO Plus is synonymous with smart LED lighting
We sit down with you to design a total solution. We produce a lighting plan and analyse your total life-cycle operating costs beforehand. Various parameters are important in this Total Cost of Ownership (TCO) analysis - the TCO is the total cost of owning and using a product during its service life.
Energy consumption is one of the most important aspects of the analysis, but issues such as purchase, maintenance and lifespan are also important. The HOGRO Plus series features high-quality design and construction that includes the use of an aluminium housing protected by a double coating and advanced LED technology. The luminaires are energy-efficient, and the RINK has a very low system power, which is obviously beneficial for the unit's CO2 footprint. The TCO of this luminaire is up to 55% lower than that of a comparable luminaire in its class.
HOGRO PLUS makes your environment sustainable
Sustainable | long service life and recyclable
The housing of the DOTT, GEO and RINK luminaires is made of durable aluminium, protected by two coats of epoxy. This finish lasts for the entire lifetime of the luminaire and can withstand adverse environments, such as coastal areas, with their high salt content in the air.
Easy to upgrade | modular
The Hogro Plus luminaires are built to a modular design and can be easily upgraded. So new technology can be easily added in the future.
Energy-efficient | save money and reduce your carbon emissions
The light intensity of the DOTT, GEO and RINK can be matched to the specific situation in order to achieve maximum savings.
Easy installation | mounted in next to no time
Convenient for installers: the DOTT, GEO and RINK are characterised by fast and simple installation
Hassle-free | 5-year warranty
As standard, Lightronics offers a 5-year warranty on LED luminaires. The expected life of our LED luminaires is 100,000 hours at an environmental temperature of 25 °C (L70/F10).
Consistent visual identity | optimal spare parts availability
Lightronics guarantees the long-term availability of spare parts for luminaires
to assure customers of a consistent visual identity far into the future.
Alternative luminaires
Stylish downlighter
BOW is a stylish LED luminaire, for use at front doors and entrances. The downlighter is energy saving and has an extensive-spread distribution pattern for entrance gallery situations or deep light bundle for above entrance doors.
Robust and stylish
The DOTT luminaire family consists of modern, impact-resistant, circular surface mounted luminaires in three sizes. The DOTT, the smallest member of the family, is suitable for porches, front doors, external access galleries, stairwells and corridors.

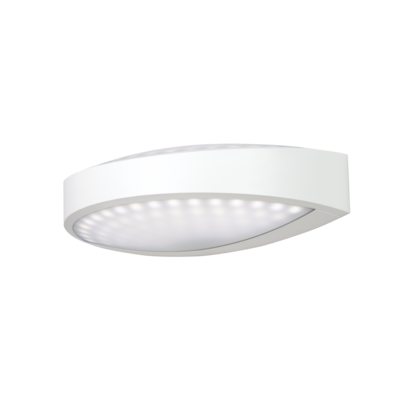

Stylish luminaire
The unique shape and functional design make the CLARA 180 a stylish luminaire for indoor spaces. The light fitting is suitable for corridors, stairwells, reception areas, meeting rooms and open-plan offices.
