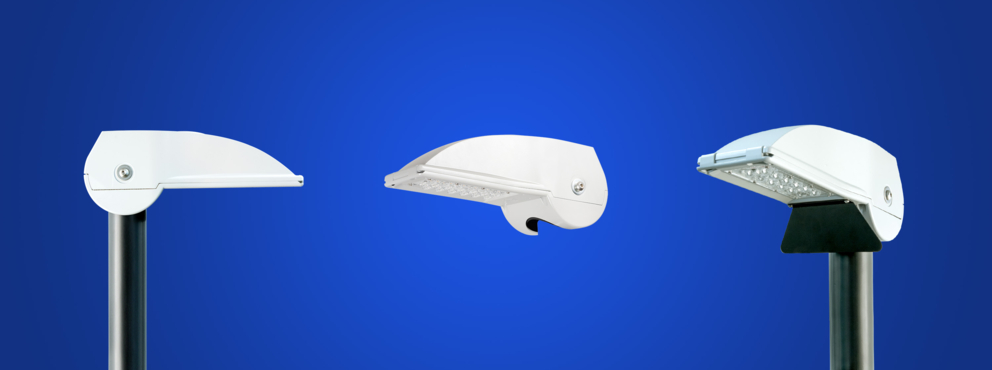

TERRAL
Minimalist design with plenty of possibilities
The TERRAL is a compact and lightweight box-type luminaire with a number of unique features. For example, the TERRAL is fitted with a patented mounting mechanism that offers a high degree of flexibility. During its development, considerable attention was paid to lighting technology and energy efficiency. There is a choice of three different light distributions, making the TERRAL suitable for residential streets, cycle paths and smaller local access roads up to class M5. The lenses are located on the outside of the housing (IP66 – dust-tight and water-resistant).
In terms of circularity and reuse: all key components in this minimalist design can be easily replaced, and many components can be reused.
Standard
Option
Applications
Residential streets, car parks, industrial estates
Luminaire type
Area Floodlight
Light cover
Acrylic (PMMA)
Color
RAL 9006
Housing
Aluminium
Weight
4 kg
Wind capture area
0,046 m2
Pole height
From 3
to 6 meter
CRI
> 70
IP
IP66
IK
IK08 (5J)
Lightprofiles
Wide distribution,
Long distribution,
Small beam
TERRAL benefits
PATENTED MOUNTING MECHANISM

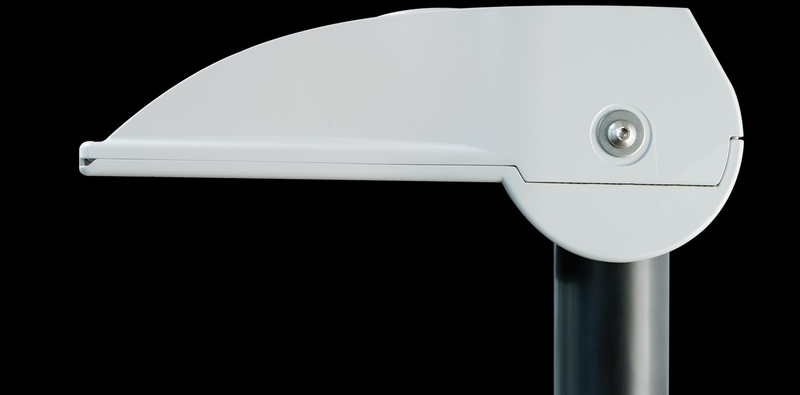

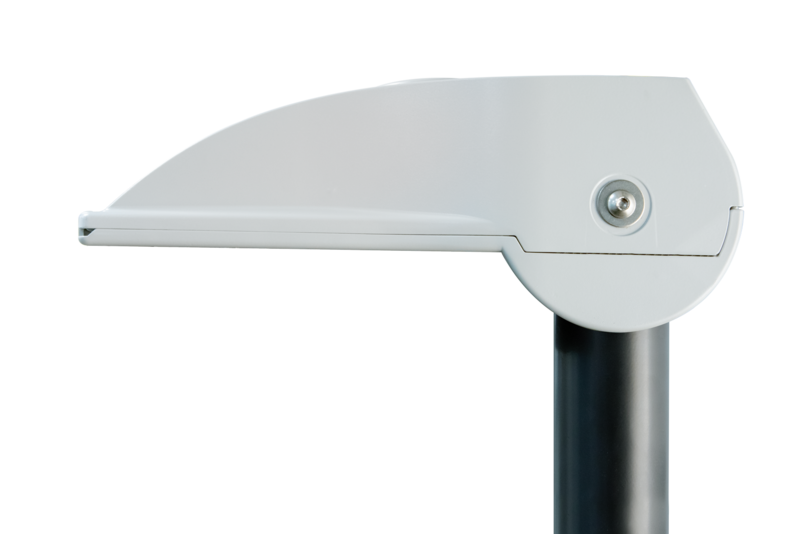

The patented mounting mechanism means that the universal housing can be fitted to both top-mounted and slide-on masts of various diameters. This can be adjusted on site.
CIRCULARITY

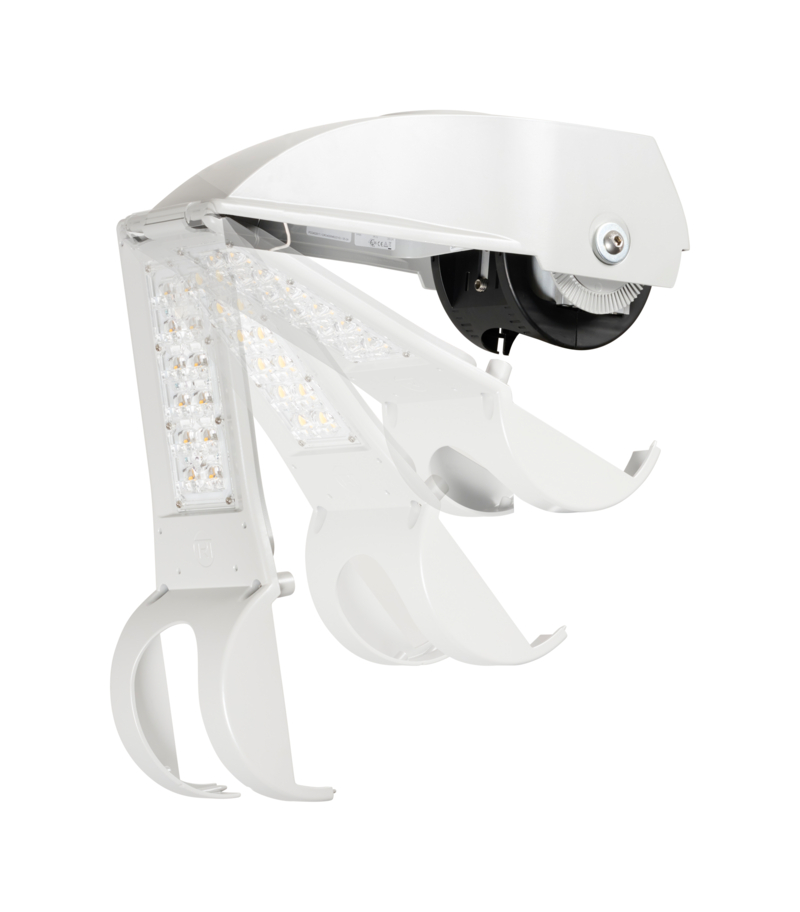

As regards circularity and reuse: all key components in this minimalist design can be easily replaced, and many components can be reused.
Alternative luminaires
Functionally complete
From residential streets to access roads: the BRISA makes it possible to illuminate the entire living environment with a single luminaire line. The BRISA has specific variants for crossings, cycle paths and for protecting flora and fauna.
Design with attention to detail
The PRUNUS C is a round luminaire that can be widely used in public spaces due to the selection of suitable light cover, wattages and light distributions. The PRUNUS C offers you the choice of four variants with different light covers. C1, C2, C3 and C4.
Iconic design

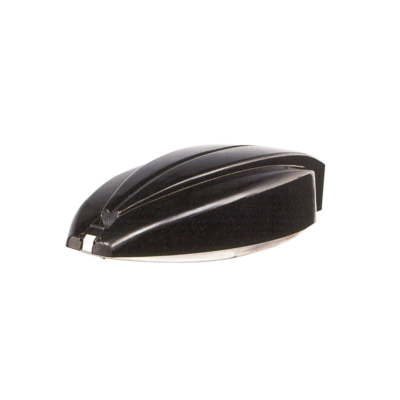

The MISTRAL flat-body luminaire combines functionality, quality and durability with a striking, contemporary design. The MISTRAL is optionally available with a MISTRAL post: a tapered, curved, black lamp post available in various lengths.
Looking for a lighting solution? We look forward to helping you
