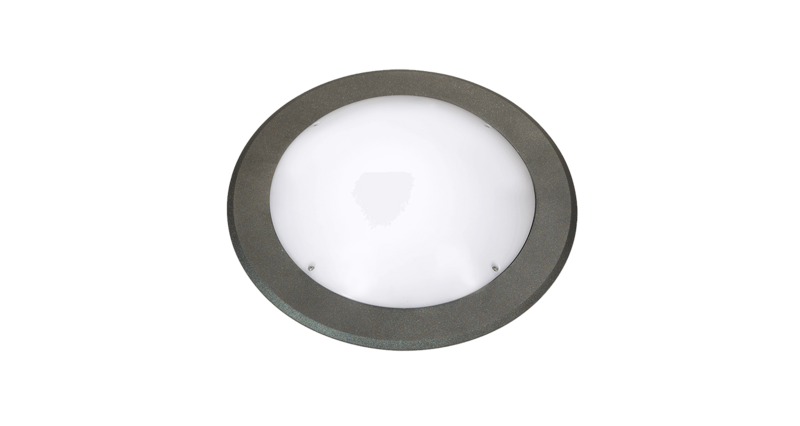

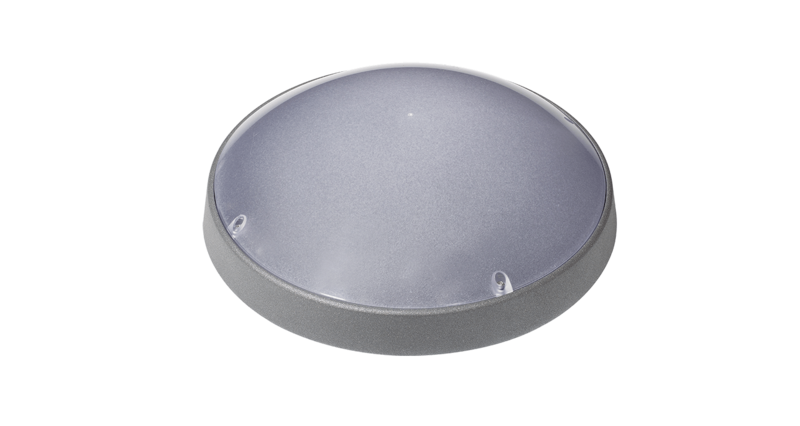

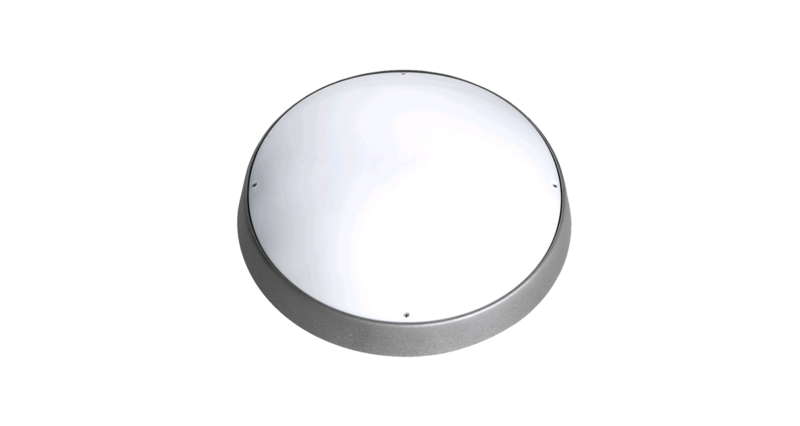

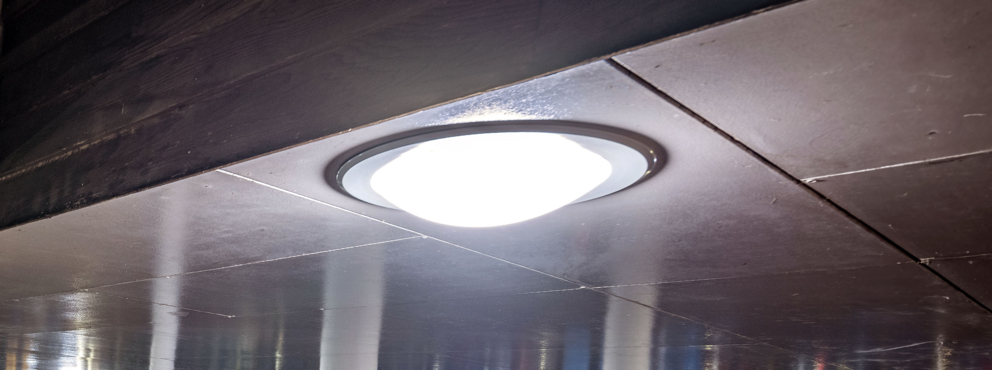

DOTT M
ROBUST AND STYLISH
The DOTT M is a round surface mounted luminaire for indoor and outdoor lighting applications where good impact resistance is required. The DOTT M is modular and easy to upgrade. The housing is made of durable, double-coated aluminium that is guaranteed to last for the product’s entire lifetime and is recyclable. The DOTT luminaire family consists of modern, impact-resistant, round surface mounted luminaires in three sizes.

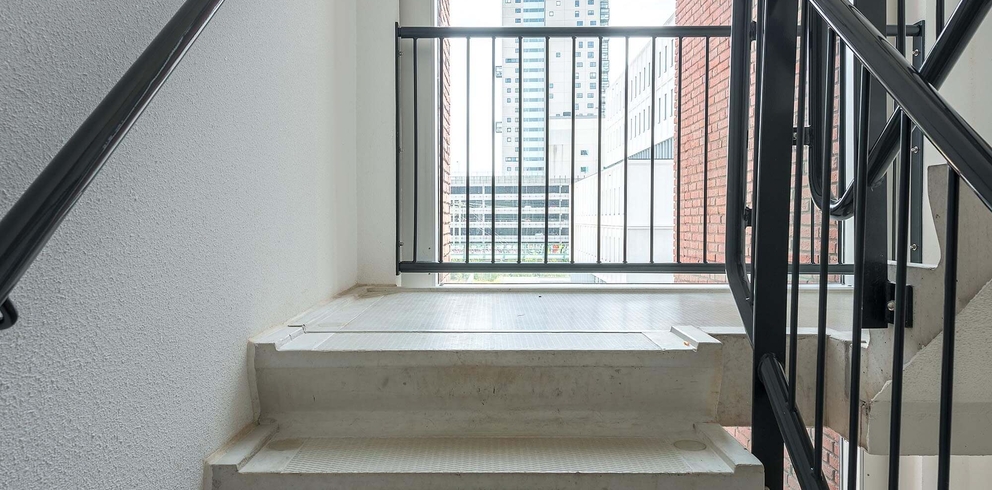

In terms of size, the DOTT M is the middle member of the DOTT luminaire family and is also available in a semi-recessed version. The DOTT M is ideally suited for use in entrance halls, lift lobbies, stairwells, corridors and entrances. This highly impact-resistant luminaire can be equipped with a twilight switch, motion sensor and emergency lighting function. You can combine the DOTT with the GEO or RINK to create a consistent visual identity for the lighting in a residential complex.
Standard
Option
Applications
Exterior façades, entrances, corridors, lift lobbies, staircases
Luminaire type
Surface-mounted luminaire,
Recessed luminaire
Light cover
UV-stabilised polycarbonate, opal or frosted
Color
RAL 9010,
DB 703,
RAL 9011
Housing
Aluminium coated
Lumenrange
From
1250
to 3050
CRI
> 80
IP
IP65
IK
5 X IK10 (100J)
Lightprofiles
Circular distribution
Cable entry
Back
Sustainable, durable and stylish LED luminaires for homes and residential complexes
Good lighting contributes to residential quality. The HOGRO Plus LED luminaires from Lightronics enhance social safety, provide light where desired and are energy-efficient. In addition, they accentuate the character of the building.
The HOGRO Plus series has been designed with great attention to detail. These functional designer luminaires for wall and ceiling lighting are part of a single family with a consistent visual identity. Sophisticated LED technology ensures even distribution of light. Find out more about the RINK, GEO and DOTT family of luminaires.
HOGRO Plus is synonymous with smart LED lighting
We sit down with you to design a total solution. We produce a lighting plan and analyse your total life-cycle operating costs beforehand. Various parameters are important in this Total Cost of Ownership (TCO) analysis - the TCO is the total cost of owning and using a product during its service life.
Energy consumption is one of the most important aspects of the analysis, but issues such as purchase, maintenance and lifespan are also important. The HOGRO Plus series features high-quality design and construction that includes the use of an aluminium housing protected by a double coating and advanced LED technology. The luminaires are energy-efficient, and the RINK has a very low system power, which is obviously beneficial for the unit's CO2 footprint. The TCO of this luminaire is up to 55% lower than that of a comparable luminaire in its class.
HOGRO PLUS makes your environment sustainable
Sustainable | long service life and recyclable
The housing of the DOTT, GEO and RINK luminaires is made of durable aluminium, protected by two coats of epoxy. This finish lasts for the entire lifetime of the luminaire and can withstand adverse environments, such as coastal areas, with their high salt content in the air.
Easy to upgrade | modular
The Hogro Plus luminaires are built to a modular design and can be easily upgraded. So new technology can be easily added in the future.
Energy-efficient | save money and reduce your carbon emissions
The light intensity of the DOTT, GEO and RINK can be matched to the specific situation in order to achieve maximum savings.
Easy installation | mounted in next to no time
Convenient for installers: the DOTT, GEO and RINK are characterised by fast and simple installation
Hassle-free | 5-year warranty
As standard, Lightronics offers a 5-year warranty on LED luminaires. The expected life of our LED luminaires is 100,000 hours at an environmental temperature of 25 °C (L70/F10).
Consistent visual identity | optimal spare parts availability
Lightronics guarantees the long-term availability of spare parts for luminaires
to assure customers of a consistent visual identity far into the future.
DOTT M benefits
CLEAR VISUAL SIGNATURE
The different variants in the DOTT luminaire range make it possible to create a residential complex that has its own clear visual signature and identity. For example, you can fit the DOTT in the external access gallery, the DOTT M in the stairwell and the DOTT XL in the entrance hall and near the lift doors. You can choose between a frosted or opalescent diffuser. The luminaire can also be used as emergency lighting. The DOTT M features a special coating to ensure that this design luminaire can withstand arduous environments such as the sea climate in coastal areas. Sophisticated technology ensures even light distribution.
Alternative luminaires
For safe passage

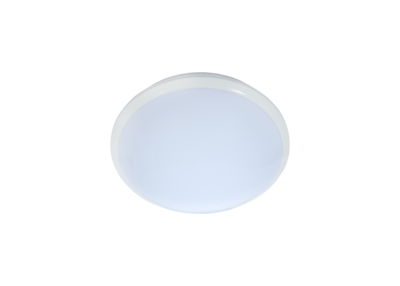

To ensure safe use, stairwells and corridors must be brightly lit from wall to wall, with no reflections. The round TTN ceiling luminaire is ideally suited to these applications. TTN is easy to install.
Robust and stylish

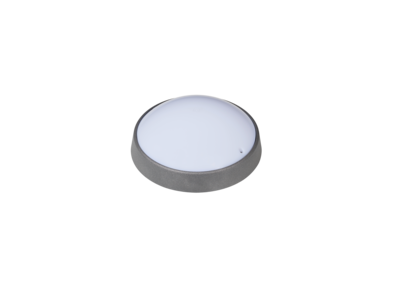

The DOTT luminaire family consists of modern, impact-resistant, circular surface mounted luminaires in three sizes. The DOTT, the smallest member of the family, is suitable for porches, front doors, external access galleries, stairwells and corridors.
A balance between aesthetics and performance

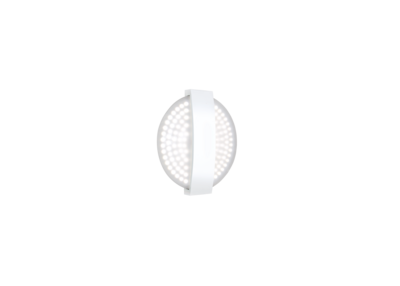

CLARA 360 strikes the perfect balance between aesthetics and performance. The luminaire is suitable for use in corridors, stairwells, reception areas and offices. It is available with an optional LED backlight (white, red, blue or green).
