TTN

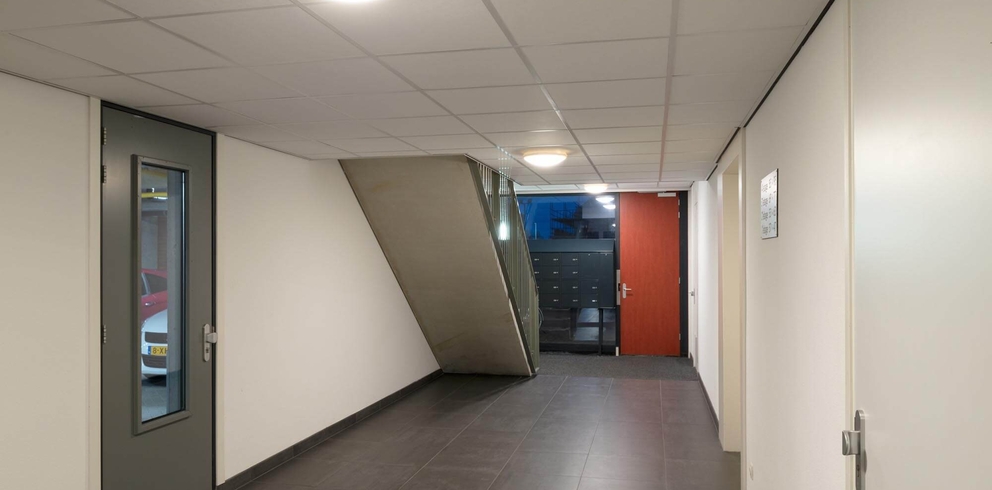

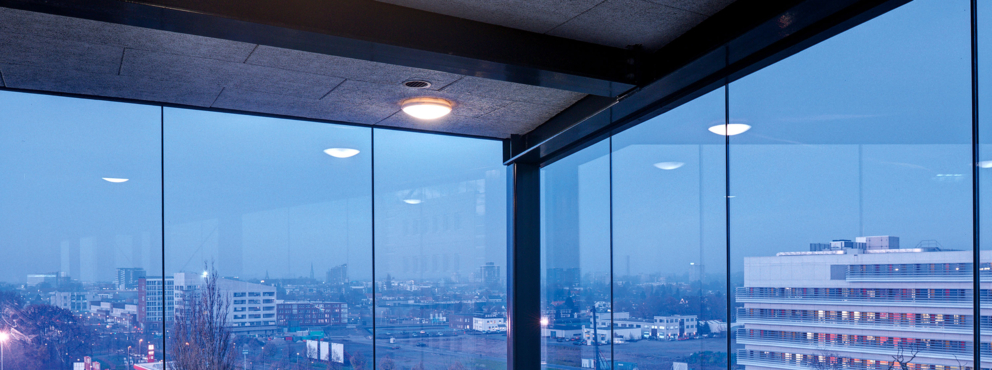

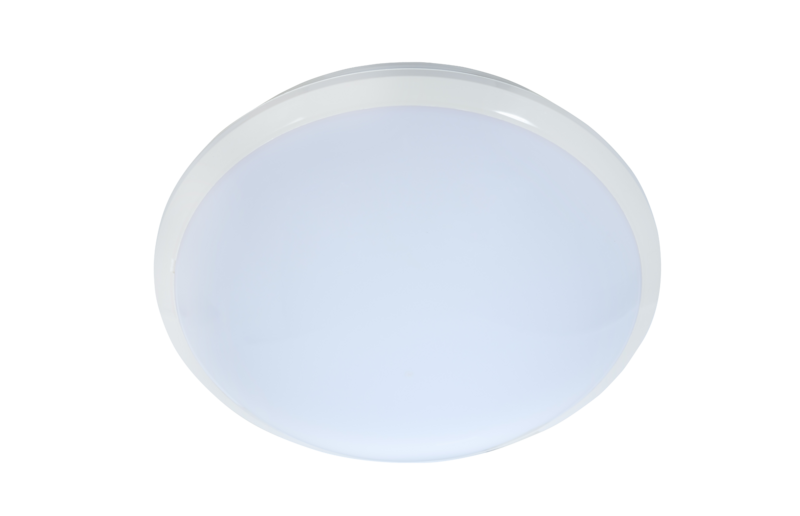

VERSATILE SURFACE-MOUNTED AND SEMI-FLUSH-MOUNTED LUMINAIREThe TTN ceiling luminaire is ideal for residential construction and satisfies circularity requirements with our LED retrofit solution. To ensure safe use, stairwells and corridors must be brightly lit from wall to wall, with no reflections. The round TTN ceiling luminaire is ideally suited to these applications. The TTN is easy to install and can also be partially recessed using the supplied rim. In addition to lighting corridors, entrance halls, external access galleries, lift lobbies and stairwells, this luminaire can also be used as emergency lighting. The IP44 and IK 10 classification guarantee good impact resistance and protection against water splash.
Standard
Option
Applications
Porches, entrances, lift lobbies, staircases
Luminaire type
Recessed luminaire,
Surface-mounted luminaire
Light cover
Polycarbonate, opal
Color
RAL 9010
Housing
UV-stabilised, flame retardant
Lumenrange
From
840
to 2320
CRI
> 80
IP
IP44
IK
IK10 (20J)
Lightprofiles
Symmetric
Cable entry
Back,
Side
TTN benefits
Benefits
Lightronics offers a large number of functional luminaires under the Hogro label. These luminaires offer proven quality and are prepared for the future. Our retrofit unit can be used to convert existing conventional TTN luminaires to LED; a solution that avoids unnecessary painting and decorating and eliminates the cost of installing replacement units. For a modest outlay, you can immediately benefit from all the advantages of LED, both in terms of the lighting technology, and maintenance and operation.
Alternative luminaires
The middle size
In terms of size, the DOTT M is the middle member of the DOTT luminaire family and is also available in a semi-recessed version. The DOTT M is ideally suited for use in entrance halls, lift lobbies, stairwells, corridors and entrances. DOTT M is also available as a semi-recessed version.
Round recessed spotlight
The R3 is a round recessed spotlight available in various versions: opal, opal halo and low glare. The R3 is suitable for student accommodation, healthcare facilities and general use. The LEDs are not visible due to the edge lighting.
Decorative design, comfortable lighting
OVIX is a stylish, circular surface-mounted luminaire for wall or ceiling mounting. The indirect light source provides comfortable illumination with low glare and high visual comfort. Thanks to its wide lateral light distribution, greater spacing between luminaires is possible. Its decorative design makes OVIX ideal for a wide range of spaces where functionality and appearance come together.
